Magnetic Equipments- Demagnetizer


Demagnetizer

TUNNEL TYPE

Features of Tunnel Type

  1. Super efficiency in demagnetizing and magnetizing suitable for any kinds of metals.
  2. Merely using tools to pass through or move into a tunnel will cause a good effect.
  3. Suitable for planned automatic process be adapted for delivery belts to proceed in order to increase productivity.
  4. Suitable for large production of component spare parts, attachments, tools, etc.
  5. Suitable for hand manual tools, etc. for filling magnetism.
  6. Attached a fan inside for dissipating heat.
  7. Special specifications will be made subject to customer’s requirements.

POWER SOURCE
CAPACITY
DITY CYCLE
DIMENSION
GATE
NET WEIGHT
L
W
H
A
B

AC 220/330 V

(Single Phase)

3250 VA
100%
370
370
200
100
150
50 Kg
4540 VA
470
370
200
150
250
55 Kg

AC 220/330 V

(3 Phase)

4500 VA
720
520
200
270
470
140 Kg

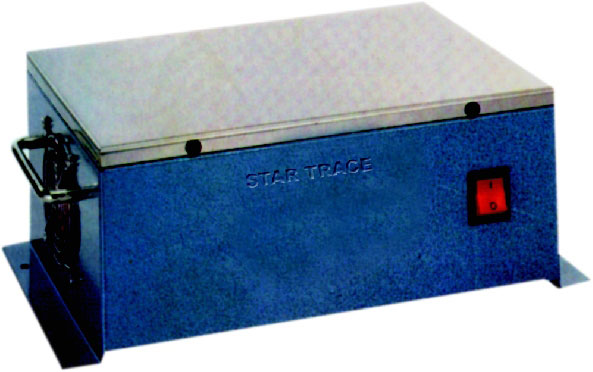

PLATE TYPE

Features of Plate Type

Plate Type are Suitable for general component spare parts, attachments, tools, etc. For fixed way demagnetization. After operating by 20 mins, it must be turned off for 20 mins. Automatic Temperature Protection : When temperature reaches to the setting point, the power will be off automatically, and then it will restart to work.




MODEL 59

MODEL - 59 Suitable for long time use; be able to use continuously for 24 hours With design of double coil inside to avoid heat release.

MODEL
POWER SOURCE
CAPACITY
DITY CYCLE
DIMENSION
NET WEIGHT
L
W
H
STDM

AC 110/220 V



220 VA
50%
127
180
90
4.0 Kg
ST-59

AC 230 V

330 VA
100%
720
520
200
8.5 Kg



MODEL 200

Features of Model 200

  1. MODEL 200 Suitable for general component spare parts, attachments, tools, etc, for fixed way demagnetization.
  2. Suitable for longtime use : Be able to use continuously for 24 hours.
  3. With the design of double coils inside to avoid heat release.




MODEL 280

Features of Model 280

  1. MODEL 280 Suitable for large production of component spare parts, attachments, tools, etc. for fixed way demagnetization.
  2. Suitable for longtime use ; be able to use continuously for 24 hours.
  3. Be adapted for delivery belts to proceed automatic demagnetization.
  4. Use for wide range : very effective.
  5. Attached a fan inside for dissipating heat.
  6. Special specifications will be made subject to customer's requirements.
