Magnetic Equipments- PM Lifter

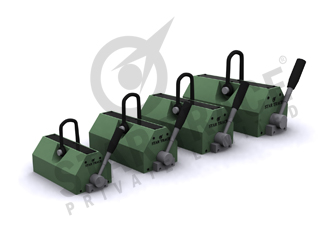

Permanent Magnetic Lifter
|
|
- Permanent Magnetic Lifter
- Compact and lightweight
- Suitable for Flat and round material
- Very High Lift to its weight ratio
- Quick & Easy Operation with ON/OFF System
- Neodymium Magnetic Powered System
- Improves Plant Safety No direct contact with men
- Large and Heavy work piece can be moved/handled safely easily by only one operator.
- Handling Heavy weight products has made easy by Permanent Star-Lift Magnet
- These magnetic lifters are widely being used in the industry. Apart from machine tool they are used in variety of industries.
- The Idea behind is to cut the time by conventional, unsafe handling to safe and secure and faster operation of lifting and handling of Heavy products.
- Construction of Permanent Star-Lift Magnet is itself a high-end technology with careful selection of material and testing.
Our experience and feedback from our customers have made our product more reliable than any others.
Model No |
Holding Value Flat Items (Kg) |
Holding Value Round Items(Kg) |
Length mm |
Width mm |
Height mm |
Weight mm |
STR 100 |
100 |
50 |
100 |
65 |
70 |
5 |
STR 200 |
250 |
250 |
150 |
100 |
100 |
10 |
STR 600 |
600 |
300 |
250 |
120 |
115 |
25 |
STR 1000 |
1000 |
500 |
320 |
175 |
160 |
30 |
STR 2000 |
2000 |
1000 |
375 |
230 |
210 |
125 |
STR 3000 |
3000 |
1500 |
460 |
285 |
260 |
220 |
STR 6000 |
6000 |
3000 |
600 |
430 |
355 |
420 |
Note:Holding Values for the PowerLift Magnets are stated at 33% of the actual value. When lifting sheets over 4'x8', use 2 or more lifts on a spreader bar to prevent sheet flexing, sagging or peel-off. Material less than 3/8" thick is susceptible to magnetic bleed through, resulting in two sheets being lifted at once. Round Item Holding Values are based on ideal conditions. Pipe length, Wall thickness diameter and surface condition can all effect the magnets performance. Please consult the factory before specifying these magnets for use on round material.
Stared Value |
Model No. |
Holding Value & Max Sheet for Specified Material Thickness |
|||||
5mm |
6mm |
9mm |
12mm |
19mm |
25mm |
||
100 Kgs |
STR 100 |
36 Kgs(4' x 4') |
75 Kgs(4' x 4') |
113 Kgs(4' x 4') |
85 Kgs(3' x 3') |
89 Kgs(2' x 3') |
89 Kgs(2' x 2.5') |
250 Kgs |
STR 250 |
94 Kgs(4' x 6') |
123 Kgs(4' x 6') |
275 Kgs(4' x 8') |
300 Kgs(4' x 8') |
296 Kgs(4' x 5') |
296 Kgs(4' x 4') |
600 Kgs |
STR 650 |
- |
- |
- |
365 Kgs(4' x 8') |
600 Kgs(4' x 8') |
600 Kgs(4' x 8') |
1000 Kgs |
STR 1000 |
- |
- |
- |
- |
440 Kgs(4' x 8') |
656 Kgs(4' x 8') |
These sheet sizes are selected due to the sag characteristics of the specified sheet. All other maximum sheet sizes are recommended due to the weight of the specified sheet.
